Lightforce 20″ Single Row LED Light Bar – Combo
Lightforce 20″ Single Row LED Light Bar – Combo
Sku: LEDB20C
Lightforce legendary performance is now available in our new black-bezel LED Bars, extruded from 6063 aluminium and finished in a UV-resistant anodised coating to face the world’s harshest conditions.
INCREDIBLE PERFORMANCE

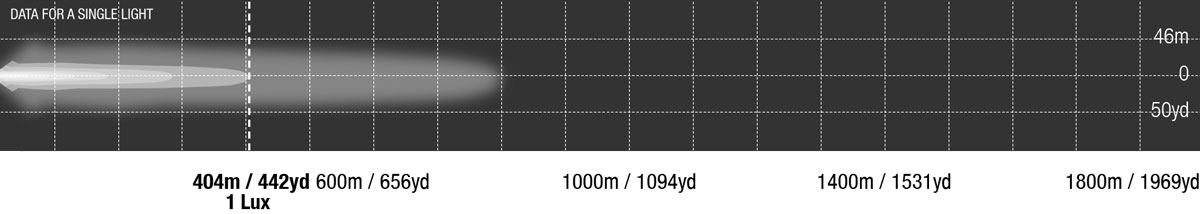

1 LUX AT 404 METRES
Lightforce performance is now available in our new black-bezel LED Bars, extruded from aluminium and finished in a UV resistant anodised coating to face the harshest conditions in the world.
The Lightforce LED Light Bar range is rugged and impact resistant, featuring a hard-coated polycarbonate lens for durability and a waterproof rating to IP69K. The LED Bar range utilises high output European LEDs tuned within the reflectors to produce unparalleled performance in their class. With multiple mounting options available and complete with a waterproof Deutsch connector – including full wiring harness – the Lightforce LED Bar range delivers powerful performance in a simple package.
FEATURES
- Extruded aluminium body with black anodized coating
- IP69K rated to protect against moisture / contaminant ingress
- Hard coated, scratch and high impact resistant polycarbonate lens
- Custom moulded strain relief connector fitted to military spec cable
- Genuine Gore® waterproof membrane with mechanical seal
- Over, under and reverse voltage protection
- Pulse width modulation thermal management circuitry
- Protected against electromagnetic and radio frequency interference (RFI)
- Stainless steel brackets and mounting hardware
- Comprehensive wiring harness
- Broad operating voltage range of 10 ~ 36 volts
- Input cable length: 450mm (17.72″).Wiring Harness Length 2.5m (92.43″)
- Deutsch waterproof connectors
- RoHS certified
- 3 Year warranty.
MOUNTING OPTIONS
Our 20 Inch Single Row LED Bars come complete with a waterproof Deutsch connector, including full wiring harness with multiple mounting options available. Please consult the diagram to see how the dimensions of these bars and their mounts can fit your vehicle.
Light Bar Style | Single Row |
---|---|
Bar Length | 20 Inch |
Globe Type | LED |
Distance: 1 lux at | 404m |
Distance: 0.25 lux at | 808m |
Effective Lumens | 4390 |
Raw Lumens | 5600 |
Colour Temperature | 5000K |
Current Draw | 7Amps @ 13.2V |
Voltage Range | 10V – 36V |
Wattage | 100W |
Ingress Protection Rating | IP69K |
Beam Pattern | Combo |
Weight | 1.22kg |
