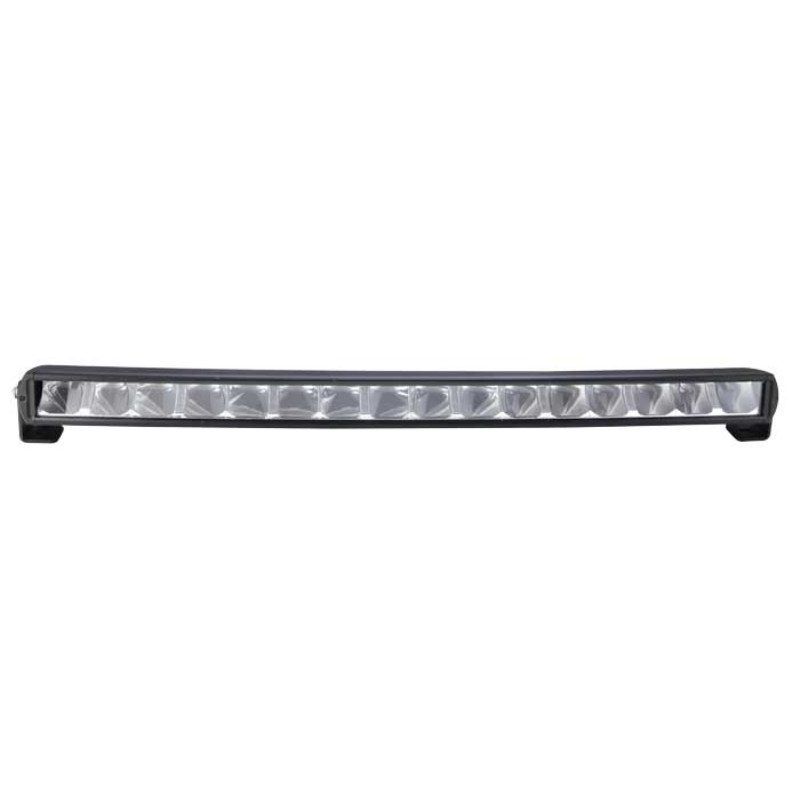

LV Titan Series 31″ 160w Curved LED Light Bar with Park Light
LV Titan Series 31″ 160w Curved LED Light Bar with Park Light
Sku: LV9119
31″ LED Curved Light Bar 160W 9-36V 16 x 10W Combo Beam with Park Function
Features
Driving Beam Pattern Dimensions
• Free form reflector design
• One piece front cover
• Die cast aluminium housing
• Powder coated finish
• Sealed Deutsch connector
• Electronic Thermal Management
• Dual mounting options
• Approved by ECE R112/R7/R10 (Ref. 45)
• 2 Year Warranty
Specifications
Wattage 160W
Input voltage 9-36V DC input
Current draw @ 12V Driving Beam: 10.2A
Park Beam: 0.4A
Colour temperature 6500°K
Raw lumens 15,200
Actual lumens 12,920
IP rating IP68 & IP69K
LED Qty 16 x 10 Watt ETI® LED (Driving Light)
8 x 1 Watt LUXEON® LED (Park Light)
1 Lux @ 480 Metres
Lens Polycarbonate
Beam type Driving Beam
Measurements 813 x 56 x 100mm
