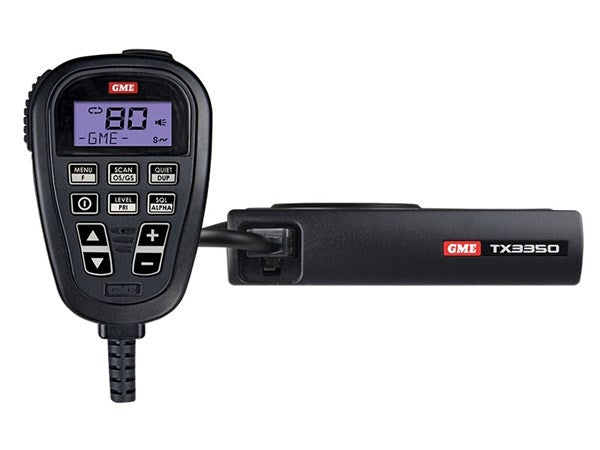

GME TX3350 Compact UHF CB Radio with SoundPath™

GME TX3350 Compact UHF CB Radio with SoundPath™

GME

Over 40 years experience.

Expert Sunroof, Leather & 4X4 installers that ensure the highest quality finish.

Wide range of quality products.

Regular price $549.00
Regular price Sale price $549.00
Sale Sold out
Shipping calculated at checkout.

DESCRIPTION

Super Compact UHF CB Radio with LCD SoundPath™ Speaker mic

The TX3350 is an 80 channel, feature packed super compact UHF CB radio with the new SoundPath™ full function LCD Speaker Microphone.


The challenge was to create a unique solution that allowed a full function LCD Microphone that could house a built in speaker with clear audio all within a compact and ergonomic design.  SoundPath™ diverts the audio through a unique convex path around the microphone bollard, whilst maintaining the compact size.

The TX3350 combines the unique combination of space saving benefits of a super compact size radio and full function speaker microphone all in the palm of your hand. The radio can now be discretely installed in almost any location within a vehicle and without the need for extension speakers.

Product Details

  • Powered by Pure Sound DSP engine
  • Full spectrum backlit LCD microphone with Soundpath speaker
  • User selectable open and group scan
  • User adjustable squelch
  • User selectable duplex channels
  • User selectable priority channel
  • 104 in-built DCS codes
  • 50 in-built CTCSS codes
  • 5 digit selcall with quiet mode
  • Five year warranty
  • Australian design and manufacture

GENERAL

Compliant Specification
Meets AS/NZS 4365 for radio communications equipment in the UHF citizen and personal radio service.
Frequency Range TX
476.425 – 477.4125 MHz
Number of Channels
80 UHF CB
Channel Spacing
12.5 kHz
Operation Mode
simplex channels 1-80, Semi Duplex channels 1‑8, 41-48
Scanning Speed
20 channels per second
Antenna Impedance
50 Ohms nominal
Nominal Battery Voltage
13.8 volts DC
Operating Voltage Range
10-15 volts DC
Overvoltage Protection
25 volts DC max At 18 volts DC the RF power is reduced, and the words ‘Hi DC’ flash.
Overcurrent Protection
In-line 2A Fuse
Frequency stability
±2.5 PPM
Modulation
FM

TRANSMITTER

RF Output
5.0 watts max
Maximum Deviation
< ± 2.5 kHz at + 20 dB limiting
Transmit Frequency Response
+6 dB per octave, 300 Hz to 3 kHz + 1-3 dB
Current Consumption
1.5 amps with 50 Ohms termination

RECEIVER

Intermediate Frequencies
1st - 21.54, MHz 2nd - 450 kHz
Sensitivity
- 123 dBm for 12 dB SINAD unweighted
Selectivity
- 6 dB at + 3.5 kHz, ‑ 60 dB at ± 12.5 kHz
Intermodulation Immunity
73 dB
Blocking Immunity
100 dB
Spurious Response Immunity
70 dB
Audio Output Power
3 watts average into 4 Ohms
Current consumption
< 180 mA muted 600 mA @ max. A.F output
Receive Frequency
‑6 dB/Octave de‑emphasis, 300 Hz to 3 kHz + 1-3 dB
Conducted Spurious Emission
< - 57 dBm

MECHANICAL SPECIFICATIONS

Dimensions
102 (W) x 87 (D) x 23 (H) mm
Weight
158 grams
