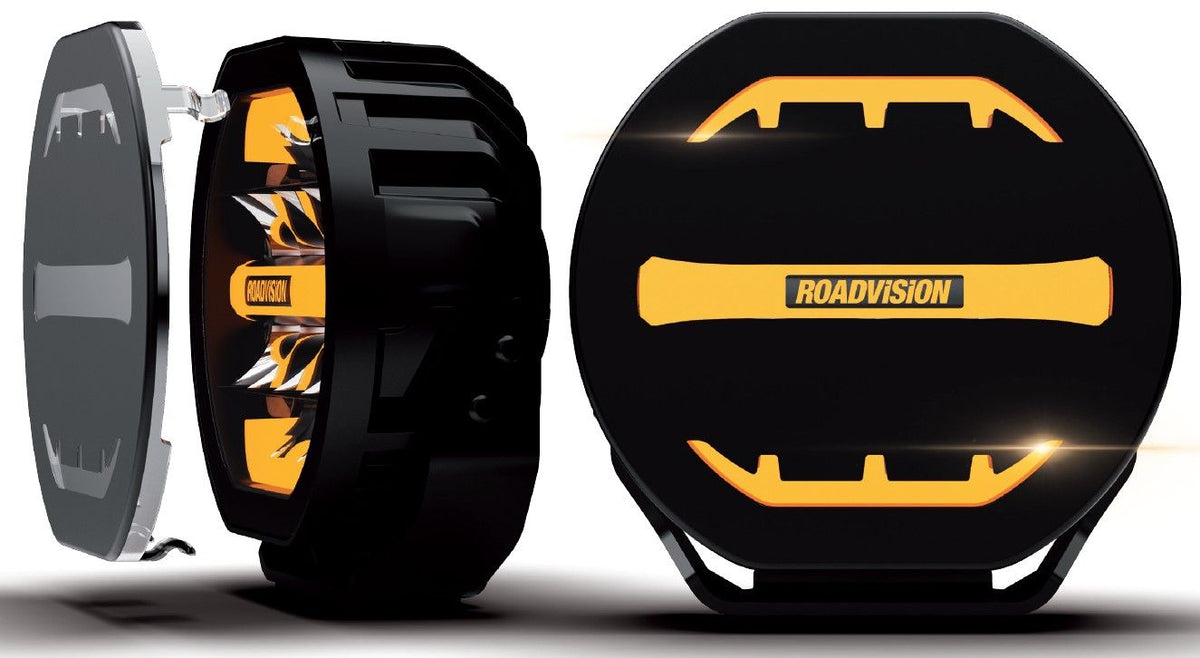

Roadvision 7" RDL9700CD HLX LED Driving Light Kit with Wiring Harness
$649.00
The Roadvision RDL9700CD HLX kit combines 7-inch LED driving lights with a wiring harness. The combination beam and dynamic DRL are designed for 10–30V vehicle electrical systems.
- 132W and 7,240 lumens per lamp (JAS-listed rating)
- 264W and 14,480 lumens maximum per set, as specified by Roadvision

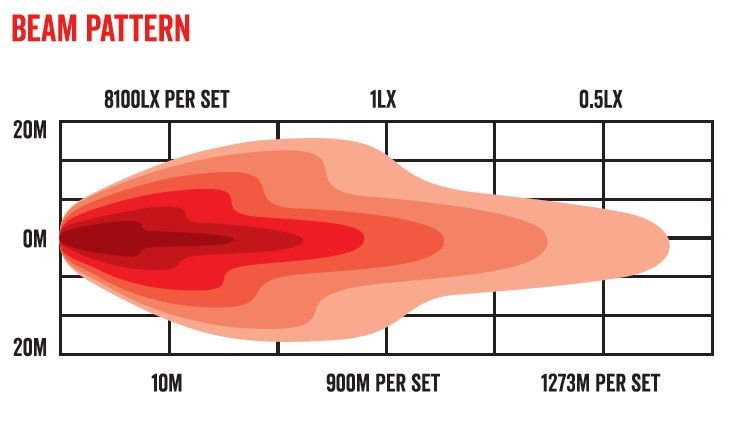

- Combination beam pattern

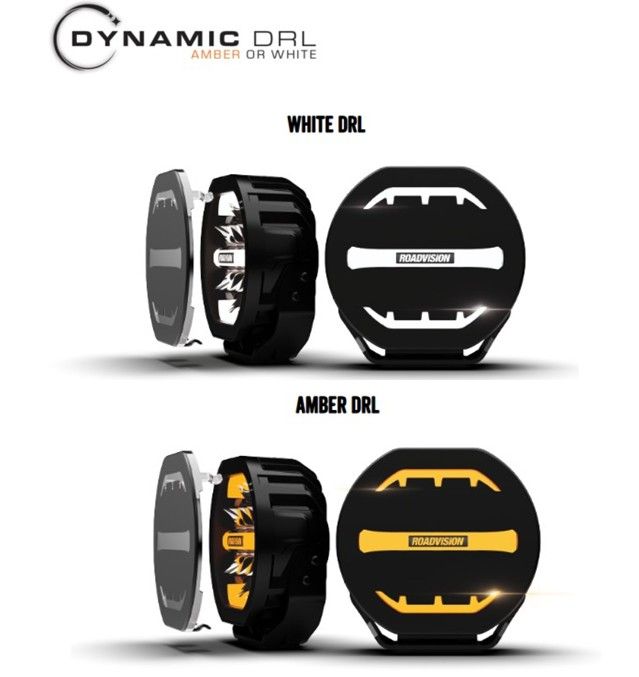

- Dynamic DRL; amber or white start-up lighting
- IP68/IP69K water and dust protection
- 6-pin Deutsch harness supplied

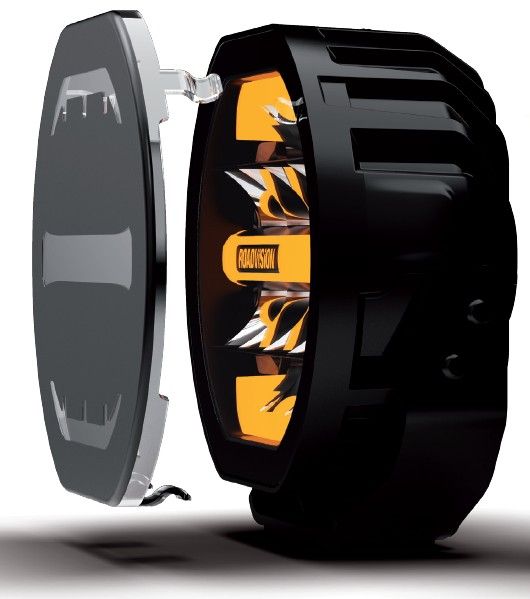

- Aluminium housing and polycarbonate lens
- Dimensions: 178 x 76 x 184 mm per light
Includes wiring harness. High-beam patch harness may be vehicle-specific and is listed separately by Roadvision. Confirm vehicle compatibility and installation requirements before purchase; professional installation is recommended where required for safe and compliant wiring.
Know before you buy
Before you buy driving lights
Extra driving lights are legal in Victoria, within limits on how many you fit, where they go and how they're switched. Here's how to choose a set that's bright where you need it and road legal.
- Four extra, at most
You can fit up to four additional driving lights, and an LED light bar counts as one of them (VSI 8). Pairs must be at the same height and face forward.
- Wired to high beam
Driving lights must only come on with your high beam and go off with it. Dip within 200 m of oncoming traffic or a vehicle you're following.
- Where they go
A single light bar must sit on the centreline. Lights can go above the roof line if they're in the front half of the vehicle, and on a bull bar they must sit behind its front face.
- Spot, flood or combo
A spot beam reaches far down the road, a flood lights a wide area close in, and a combo does some of both. Lux at a distance tells you more about reach than total lumens (Narva).
Common questions
Are light bars legal in Victoria?
Yes. A light bar counts as one of up to four additional driving lights. It must be white, face forward, sit on the vehicle's centreline if it's a single bar, and only work with high beam (VSI 8; Road Safety (Vehicles) Regulations 2021).
How many driving lights can I fit?
Up to four additional lights, light bars included (VSI 8).
Do they have to be wired to high beam?
Yes. In Victoria, driving lights may only switch on when your high beam is on and must turn off with it (VSI 8).
Are amber or coloured covers legal?
Not on the road. Lamp covers must be clear, untinted, uncoloured and clean (VSI 8).
Do I have to cover my lights when I'm not using them?
There's no Victorian rule that says you must cover them. What matters is that they only work with high beam and that you dip them for other road users.
Lux or lumens: which matters?
Lumens measure the total light a lamp puts out. Lux measures how much light lands on the road at a distance, so the distance at which a beam still gives 1 lux tells you more about how far it reaches (Narva).
