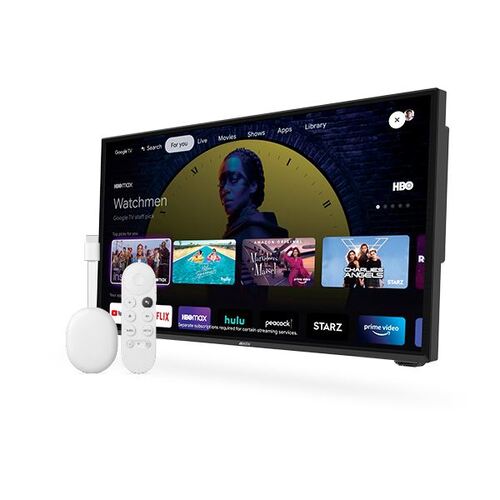

AXIS AX1932GTV 12/24V 32" (80CM) incl Chromecast with Google TV

AXIS AX1932GTV 12/24V 32" (80CM) incl Chromecast with Google TV

$739.00

Call 03 9808 8966



Designed for caravans, RV’s and other mobile applications. The AX19GTV series are a 12/24V Bluetooth HD LED TV that support a wide choice of media inputs, which allows enjoyment of movies, music, photos and more via DVD, CD, USB or an external source unit. Users are able to control live TV via the PVR & Timeshift functions. The AX19GTV series are also built to resist moisture and handle vibrations experienced when on the move.

PANEL
– Display Size: 32” (81cm)
– Resolution: 1366 x 768
– Brightness: 250cd/m2
– Contrast: 1200:1
– Viewing Angle: 178(H) x 178(V)

POWER
– Input: 9-36V DC / 4A @12V
– Optional AC Adapter: 240V 50Hz/60Hz
– Stand-by Power Consumption: 0.5W

CABINET
– Conformal Coated Circuit Board
– Size: 731.1 x 85.7 x 432.4
– 100 x 200 VESA Mounting
– Net weight: 5.1 kg

MULTIMEDIA & FEATURES
– TIMESHIFT: Pause, Rewind & Fast-Forward
Live TV (using PVR)
– USB Reader
– PVR (Personal Video Recorder)
– EPG (Electronic Program Guide)

DVD/CD PLAYER
– Built-In DVD Player
– Supports DVD/VCD/CD/MP3/DIVX/JPEG
– Supports DVD±R/DVD±RW/CD-R/RW

TUNER
– DVB-T Digital HD Tuner
– Analogue Tuner
– DTV Video System: MPEG-1MP@ML, H.264,
MPEG-4 (Video Codes)
– DTV Sound System: MPEG-1 Layer 1/2
– ATV Video System: PAL
– ATV Sound System: BG, DK, I

SYSTEM
– MPEG-4 Video System
– OSD: Multi-languages
– Number of Channels: 99
– Comb Filter: 3D
– Teletext: ATV/1000 Pages
– Speakers: 2 x 8W Stereo

INPUTS
– RF/Antenna: 1
– HDMI: 2
– USB: 1 x Media, 1 x Power Output
– Mini YPbPr: 1
– Mini AV: 1
– VGA: 1
– PC Audio: 1

OUTPUTS
– Bluetooth Audio Transmitter
– Headphone: 1 (3.5mm)
– Digital Coaxial: 1
– Line Out: 1


OPTIONAL EXTRA's

- DS3 - AXIS TV BASE to Suit Axis TV's

- PC3A AXIS 240V ADAPTOR-19/22/24″ TV

Know before you buy

Before you buy towing gear

Safe towing comes down to a few numbers on your trailer and your vehicle. Here's how they decide what brakes, controller and towbar you need.

  1. GTM decides the brakes

    Trailer brake rules use the trailer's GTM (the mass on its axles), not its ATM. Up to 750 kg GTM, no brakes are needed. Over 750 kg the trailer needs brakes, and electric brakes need a controller in the vehicle.

  2. Over 2,000 kg

    All wheels must be braked, with a breakaway system that applies the brakes immediately and holds them for at least 15 minutes if the trailer comes off (VSB 1).

  3. The lowest rating wins

    Your towing limit is the lower of the towbar's rating and the vehicle's rating. The tow ball weight counts towards your vehicle's GVM.

  4. The right plug

    On a 7-pin plug, pin 5 is for brakes only. If the van needs power for a fridge, use a 12-pin plug or an Anderson connection.

Common questions

When does my trailer need electric brakes?

Brakes are required once the trailer's GTM is over 750 kg. Over 750 kg the brakes must work from a controller in the vehicle unless they are override (over-run) brakes, which are only allowed up to 2,000 kg. Over 2,000 kg every wheel must be braked, plus a breakaway system (VSB 1).

What's the difference between ATM and GTM?

ATM is the trailer's total mass when loaded, including the weight on the tow ball. GTM is the mass carried by the trailer's own axles. ATM minus GTM is the tow ball download. Both are maker ratings, not weighbridge readings.

Proportional or user-controlled brake controller?

A proportional controller brakes the trailer in step with the vehicle and suits most on-road towing. User-controlled (time-based) braking gives you manual control, which Redarc recommends for sand and steep descents.

What is a breakaway system?

A battery-powered system on the trailer that applies its brakes if it separates from the vehicle. It's required over 2,000 kg and must hold the brakes for at least 15 minutes (VSB 1).

How much tow ball weight should I have?

Guidance ranges from about 5 to 10 percent of the trailer's weight. It counts towards your vehicle's GVM and must stay within the towbar's and vehicle's tow ball limits.

How many safety chains does my trailer need?

One chain built to AS 4177.4 up to 2,500 kg ATM, and two above that (VSB 1).
