HardKorr 100CM (1m) White LED Light Bar Kit With Diffuser
$69.00
The Hard Korr 100cm white LED light bar kit is a 12 volt camp light that plugs straight into a cigarette socket and throws a wide 180° beam, making it well suited to lighting up canopies, tailgates, awnings and camp kitchens. The included diffuser softens the output into a broader, more comfortable spread so you are not staring into bare LEDs.
Key features
- Up to 1,380 lumens of white light from genuine Osram SMD5050 LEDs
- Removable diffuser creates a wider, softer beam
- Inbuilt magnets at each end of the bar, plus removable pole clips for non-magnetic tent and awning poles
- 3 metre power lead with cigarette plug and a 12V switch
- IP68 waterproof rated bar (switch excluded)
- Housing made from 6063 aluminium alloy with UV resistant epoxy resin

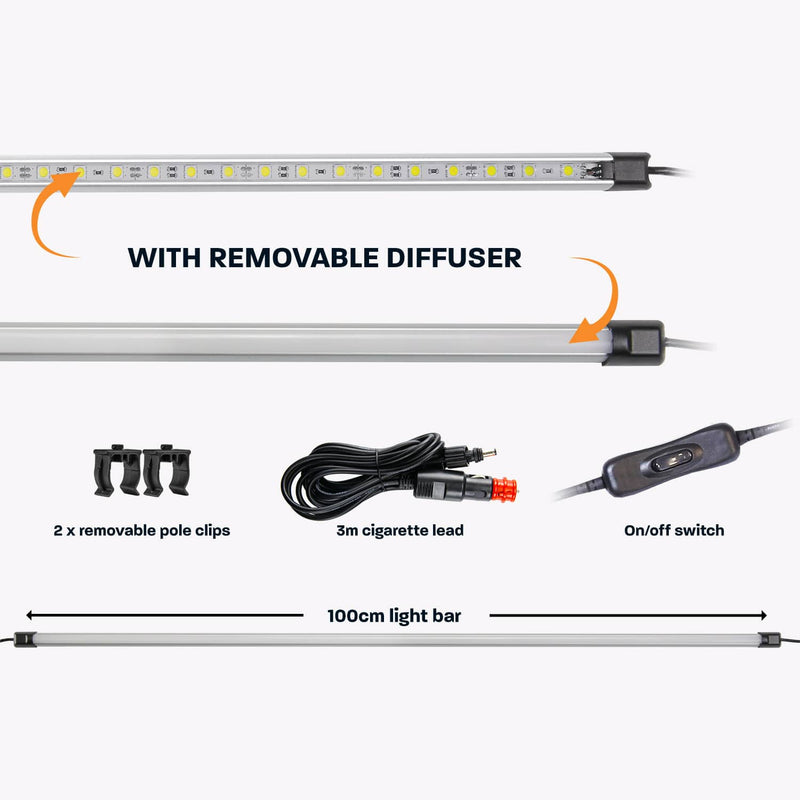

- Kit includes the 1m light bar, diffuser, two end caps, two pole clips, switch and 3m cig plug lead
Specifications
- Model: RBW100CIGD
- Light output: 1,380 lumens maximum
- Power draw: 1.2A at 12V
- Bar length: 100cm; bar width 18.8mm; height 15mm with diffuser fitted
- Beam angle: 180°
- LED lifespan: 50,000+ hours
- Waterproof rating: IP68 (excluding switch)
- Warranty: 5 year replacement warranty
Fitting and advice
Complete 4x4 stocks Hard Korr gear at our Burwood workshop, where our team can fit it for you or talk through what suits your setup. Call 03 9808 8966 with any questions.
Know before you buy
Before you buy driving lights
Extra driving lights are legal in Victoria, within limits on how many you fit, where they go and how they're switched. Here's how to choose a set that's bright where you need it and road legal.
- Four extra, at most
You can fit up to four additional driving lights, and an LED light bar counts as one of them (VSI 8). Pairs must be at the same height and face forward.
- Wired to high beam
Driving lights must only come on with your high beam and go off with it. Dip within 200 m of oncoming traffic or a vehicle you're following.
- Where they go
A single light bar must sit on the centreline. Lights can go above the roof line if they're in the front half of the vehicle, and on a bull bar they must sit behind its front face.
- Spot, flood or combo
A spot beam reaches far down the road, a flood lights a wide area close in, and a combo does some of both. Lux at a distance tells you more about reach than total lumens (Narva).
Common questions
Are light bars legal in Victoria?
Yes. A light bar counts as one of up to four additional driving lights. It must be white, face forward, sit on the vehicle's centreline if it's a single bar, and only work with high beam (VSI 8; Road Safety (Vehicles) Regulations 2021).
How many driving lights can I fit?
Up to four additional lights, light bars included (VSI 8).
Do they have to be wired to high beam?
Yes. In Victoria, driving lights may only switch on when your high beam is on and must turn off with it (VSI 8).
Are amber or coloured covers legal?
Not on the road. Lamp covers must be clear, untinted, uncoloured and clean (VSI 8).
Do I have to cover my lights when I'm not using them?
There's no Victorian rule that says you must cover them. What matters is that they only work with high beam and that you dip them for other road users.
Lux or lumens: which matters?
Lumens measure the total light a lamp puts out. Lux measures how much light lands on the road at a distance, so the distance at which a beam still gives 1 lux tells you more about how far it reaches (Narva).
